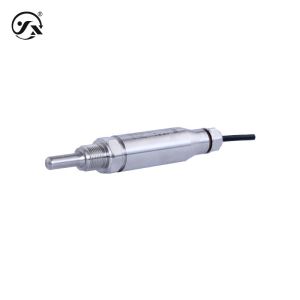

CWDZ31AY Waterproof Industrial Temperature Transmitter Manufacturer

Ask Lasest Price
Brand Name :	Star merter
Model Number :	CWDZ31AY
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	30000 Piece/Month

Add to Cart

Product Details
Company Profile

CWDZ31AY Waterproof Industrial Temperature Transmitter Manufacturer

CWDZ31AY Waterproof Temperature Transmitter Widely Used In Various Industrial Fields Measuring Range -50~300°C

CWDZ31AY waterproof temperature transmitter is well designed and of excellent quality, making it ideal for general industry. The IP68 degree of protection is ideal for harsh field environments, such as wet and immersion measurements, and is cost-effective.

Base parameters
Measuring medium	Liquids or gases, etc. (compatible with contact materials)
Measuring range	-50~300°C (see range parameter selection table for details)
Output signal	4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC,PT100
Power supply	12～36VDC,15～36VDC
precision	0.25%FS,0.5%FS
resolution	Analog output 0.02%FS, digital output 0.1°C
Measuring cell	1*Pt100(1/3B grade)
Response time	Protection tube φ6mm≈18s, protective tube φ10mm≈36s (in accordance with IEC60751, 0.4m/s water flow, 10°C step)
Stable performance	± 0.1% FS/year
Between ons	400ms
Power range
Voltage type	≤0.008Us(W),≤0.001Us(W)
Current type	≤0.02Us(W)
Digital	≤0.015Us(W)
Load characteristics	Current type: load ≤{(Us-9)/0.02(Us=supply voltage)}Ω
Degree of protection	IP68
Ambient temperature	-40～85℃
Ambient humidity	0%~95%RH(no condensation, no condensation)
Electrical protection
Short-circuit protection	perpetual
Anti-polarity protection	No damage, but not working
Insulation resistance	≥100MΩ,500VDC
Dielectric strength	500VAC
Output limits
The output is minimal	2.5mA,0,0.001VDC
Output maximum	26mA,3500/7000,10.2VDC,5.2VDC
Overall material
Protective tube	304 stainless steel (contact with the medium to be measured)
Process connection	304 stainless steel (contact with the medium to be measured)
enclosure	304 stainless steel
Cable	φ5mm polyurethane shielded cable (UV protection)
Mechanical stability
Seismic performance	10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance	500g/ms conforms to IEC60068-2-27 standard

Manual
Product Information -Chinese (CN)	PDF
Product Information -English (EN)	PDF
Product selection -Chinese (CN)	PDF
Product selection -English (EN)	PDF
Installation instructions -Chinese (CN)	PDF
Installation instructions -English (EN)	PDF
Protocol -Chinese (CN)	PDF
Protocol -English (EN)	PDF
